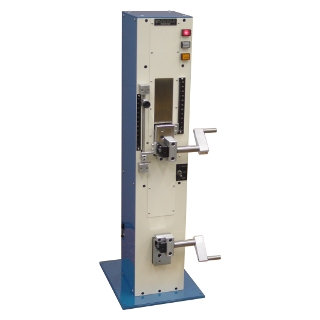

Nova 120

• Meets NEMA, IEC, and JIS specifications
• N.I.S.T traceability

• Adjustable % elongation up to 50%

• Wire holding clamp accommodates  wide range of wire sizes

• Test magnet wire sizes:
  8 AWG - 12 AWG (3.15mm - 2mm)

A laser engraved scale is used to indicate the percent elongation.
Precision ball screw, linear guide, and totally enclosed chassis provide a sturdy and reliable test platform. The maximum elongation is 50 %. Optional wire holding post allows testing to 44 AWG (0.05 mm).
