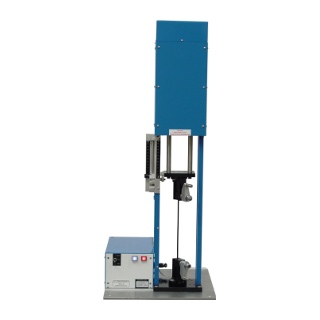

Nova 130

• Meets NEMA, IEC, and JIS specifications
• N.I.S.T traceability
• Adjustable % elongation up to 50%
• Wire holding clamp accommodates wide range of wire sizes
• Test magnet wire sizes:
  12 AWG - 4 AWG
  (2 mm – 5 mm)

A laser engraved scale is used to indicate the percent elongation.  Precision ball screw, linear guide, and sturdy chassis provides a reliable test platform. The maximum elongation is 50 %.  Optional wire holding post allows testing to 44 AWG (0.05 mm).
