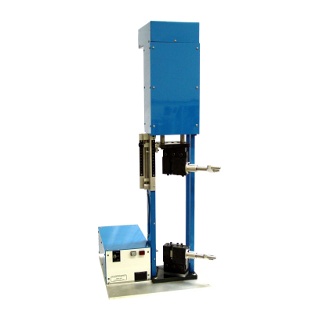

Nova 150

• Meets NEMA, IEC, and JIS specifications
• N.I.S.T traceability
• Adjustable % elongation up to 50%
• Wire holding clamp accommodates wide range of wire sizes
• Test magnet wire sizes:
  Rectangular wire up to
  1/4” x 3/8”
  (6 mm x 10 mm)
  Round wires
  12 AWG – 0.25” dia.
  (2 mm - 6mm)

A laser engraved scale is used to indicate the percent elongation.  Precision ball screw, linear guide, and sturdy chassis provides a reliable test platform. The maximum elongation is 50 %.  Optional wire holding post allows testing to 44 AWG (0.05 mm).
