• Meets NEMA, IEC, JIS Specifications
• Ball Bearing Shaft Support
• Test Magnet Wire Sizes:
  12AWG to 44 AWG
  (2mm to 0.05mm)

Download Brochure

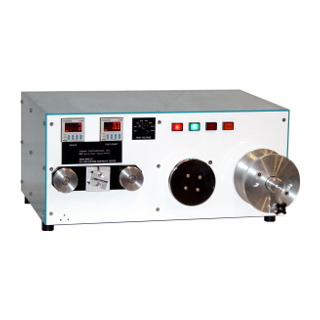

The NOVA 1602-LC D.C. High Voltage Continuity Tester performs the high voltage continuity test on round film insulated magnet wire according to NEMA, IEC, and JIS specification.  The tester has a test voltage range of 350 to 3000 volts D.C.  The fault current range is 5 micro-amperes at 350 volts D.C. to 16 micro-amperes at 3000 volts D.C.  The fault counter circuit detects faults at a rate of 450 faults per minute when bare copper is pulled across the stainless steel high voltage sheaves at a speed of 60 feet per minute.  The fault counter displays the number of faults detected. The beeper come on when a FAULT is detected.  The tester has the carbon brush fault detection head that accommodates wire sizes from 14 AWG to 44 AWG.

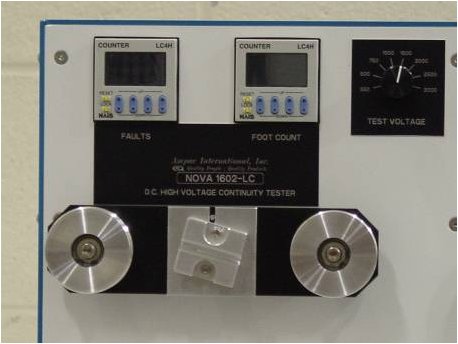

Controls

Carbon brush
