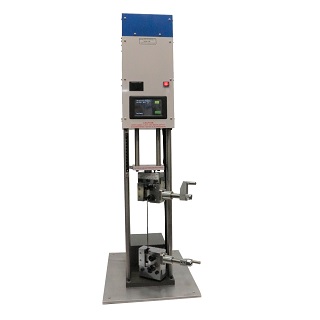

Nova+ 150

Magnet Wire Elongation Tester

Features:

  • Meets NEMA or IEC and JIS specifications
  • N.I.S.T traceability
  • Elongation up to 50%
  • Adjustable % elongation up to 50%
  • Wireless output (WR-100 receiver required)
  • Color touchscreen interface
  • Wire holding post and clamps accommodates wide range of wire sizes:
    30 AWG - 4 AWG (0.01" - 0.2")
    Rectangular wire up to 0.187"x0.375" or 0.07 sq. inches
    0.25 mm - 5 mm dia.
    rectangular wire up to 4.8 mm x 9.5 mm or 46 sq. mm.
  • 120VAC/3.0amps @ 50/60Hz
    240VAC/1.5amps @ 50/60Hz

The Nova+ 150 Magnet Wire Elongation Tester performs the elongation test according to NEMA or IEC and JIS specifications. The tester can be calibrated traceable to NIST. The elongation tester elongates a specimen of annealed magnet wire with a test length of 10 inches (NEMA) or 250 mm (IEC) to a predetermined % elongation up to 50% or to failure. The maximum elongation is 50 %. The tester can test wire sizes 30 AWG - 4 AWG round wire and rectangular wire up to 0.187"x0.375" or 0.07 sq. inches. (0.25 mm - 5 mm diameter and rectangular wire up to 4.8 mm x 9.5 mm or 46 sq. mm).

Ball screw and linear guide assembly together with reliable electronics in a totally enclosed chassis provide a sturdy
and reliable test platform.

Dimensions:

18" L x 20" W x 45" H
46cm L x 51cm W x 114cm H
