Nova 510

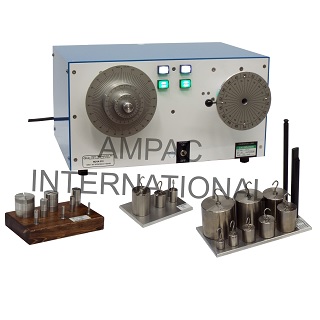

NEMA and IEC Springback Tester
Features:
- Meets NEMA, JIS, and IEC Specifications
- 1 Degree Resolution
- Complete sets of test weights for NEMA, JIS, and IEC testing
- Test Magnet Wire Sizes:
NEMA -- 30 AWG to 14 AWG
(0.25 mm to 1.6 mm)
JIS -- 30 AWG to 14 AWG
(0.25 mm to 1.6 mm)
IEC -- 0.08 mm to 1.6 mm -
120VAC/2Amps @ 60Hz
240VAC/1Amp @ 50Hz
The Nova 510 NEMA and IEC Springback Tester perform the magnet wire springback test according to NEMA, JIS, and IEC specifications. The NEMA Springback test can also perform the JIS springback test. It has a mandrel with 3 sets of diameters that accommodate wire sizes from 30 AWG to 14 AWG (0.25 mm to 1.6 mm). The motor rotates the mandrel 3 revolutions to wind the wire. Upon completion of the test, the graduated scales indicate the amount of springback.
The IEC Springback test section has a drive shaft that accepts the mandrels required for the IEC springback test. The mandrels are interchangeable with reference to wire sizes. The motor rotates the mandrels for 5 revolutions to wind the wire. On completion of the test, the graduated scales indicate the springback value. Springback values are used to determine the softness of the copper wire.
Dimensions:
18" L x 12" W x 10.5" H
46cm L x 30.5cm W x 27cm H
Options:
Stand is optional
