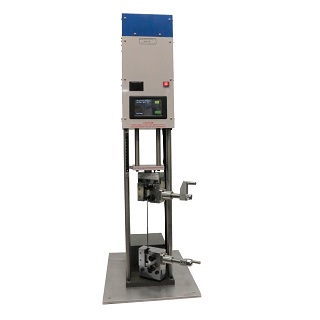

Nova+ 160

Magnet Wire Elongation Tester

Features:

  • Meets NEMA or IEC and JIS specifications
  • N.I.S.T traceability
  • Elongation up to 50%
  • Adjustable % elongation up to 60%
  • Wireless output (WR-100 receiver required)
  • Color touchscreen interface
  • Wire holding post and clamps accommodates wide range of wire sizes:
    12 AWG - 1/4" diameter
    Rectangular wire up to 0.25"x0.5" or 0.125 sq. inches
    (2 mm - 6 mm diameter)
    (Rectangular wire up to 6 mm x 12 mm or 72 sq. mm)
    Maximum test load is 6,000 lbf (27 KN).
  • 120VAC/5amps @ 50/60Hz
    240VAC/2.5amps @ 50/60Hz

The Nova+ 160 Magnet Wire Elongation Tester performs the elongation test according to NEMA or IEC and JIS specifications. The tester can be calibrated traceable to NIST. The elongation tester elongates a specimen of annealed magnet wire with a test length of 10 inches (NEMA) or 250 mm (IEC) to a predetermined % elongation up to 50% or to failure. The maximum elongation is 50 %.
The tester can test wire sizes 12 AWG - 0.25 inches diameter and rectangular wire up to 0.25"x0.5" or 0.125 sq. inches (2 mm - 6 mm diameter and rectangular wire up to 6 mm x 12 mm or 72 sq. mm).
The maximum test load is 6,000 lbf (27 KN).
Ball screw and linear guide assembly together with reliable electronics in a totally enclosed chassis provide a sturdy and reliable test platform.

Dimensions:

21" L x 18" W x 44" H
53cm L x 46cm W x 112cm H
